Multiplace Quadro
Rectangular-section multiplace hyperbaric chamber
The higher-volume option, for centers with the room to take it.
Quadro specification
| Chamber class | Multiplace |
|---|---|
| Hull section | Rectangular |
| Door opening | 120 cm |
| Control system | HiperFlow |
| EU conformity | CE Mark |
|---|---|
| Medical device regulation | MDR EU 2017/745 |
| Medical devices directive (legacy) | 93/42/EEC |
| Quality management | EN ISO 13485:2016 |
| Human-occupancy pressure vessel | EN 14931 |
| Pressure vessel code | ASME PVHO |
| Pressure equipment directive | PED 2014/68/EU |
| Health care facilities code | NFPA 99 |
Gallery
A rectangular section buys interior volume
A cylinder wastes its corners. Squaring the section off is the whole argument for the Quadro: a larger interior for a center that needs one, in exchange for a bigger room to put it in. The flat face is what makes the 120 cm door possible, and the 120 cm door is what lets an ICU bed come straight in. Compliance set and automation platform are the Omega’s.
What the section changes

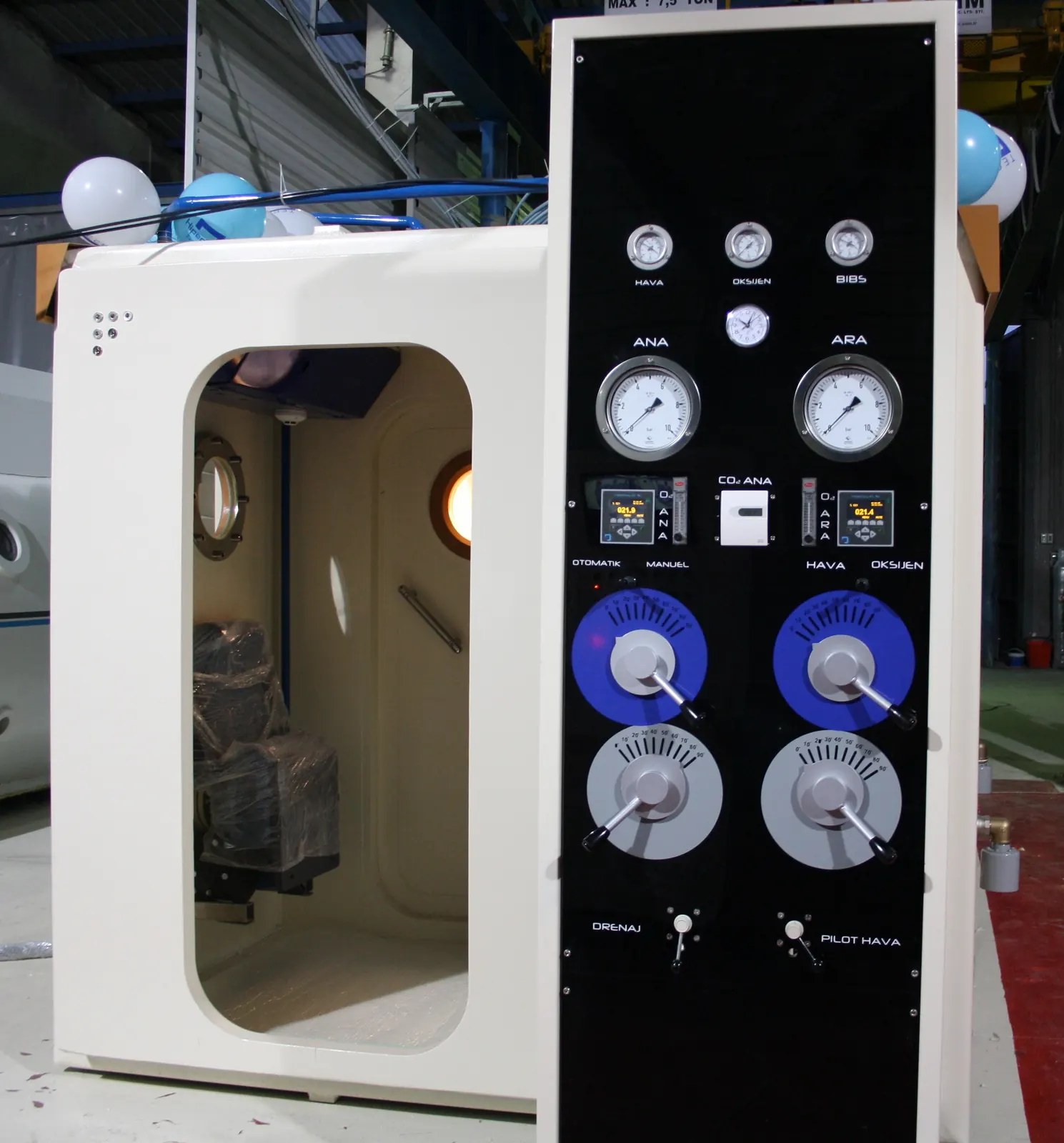

- A flat end face, and a 120 cm door in it
- Low threshold, for wheelchair access
- Lightweight ramps, for ICU stretcher access

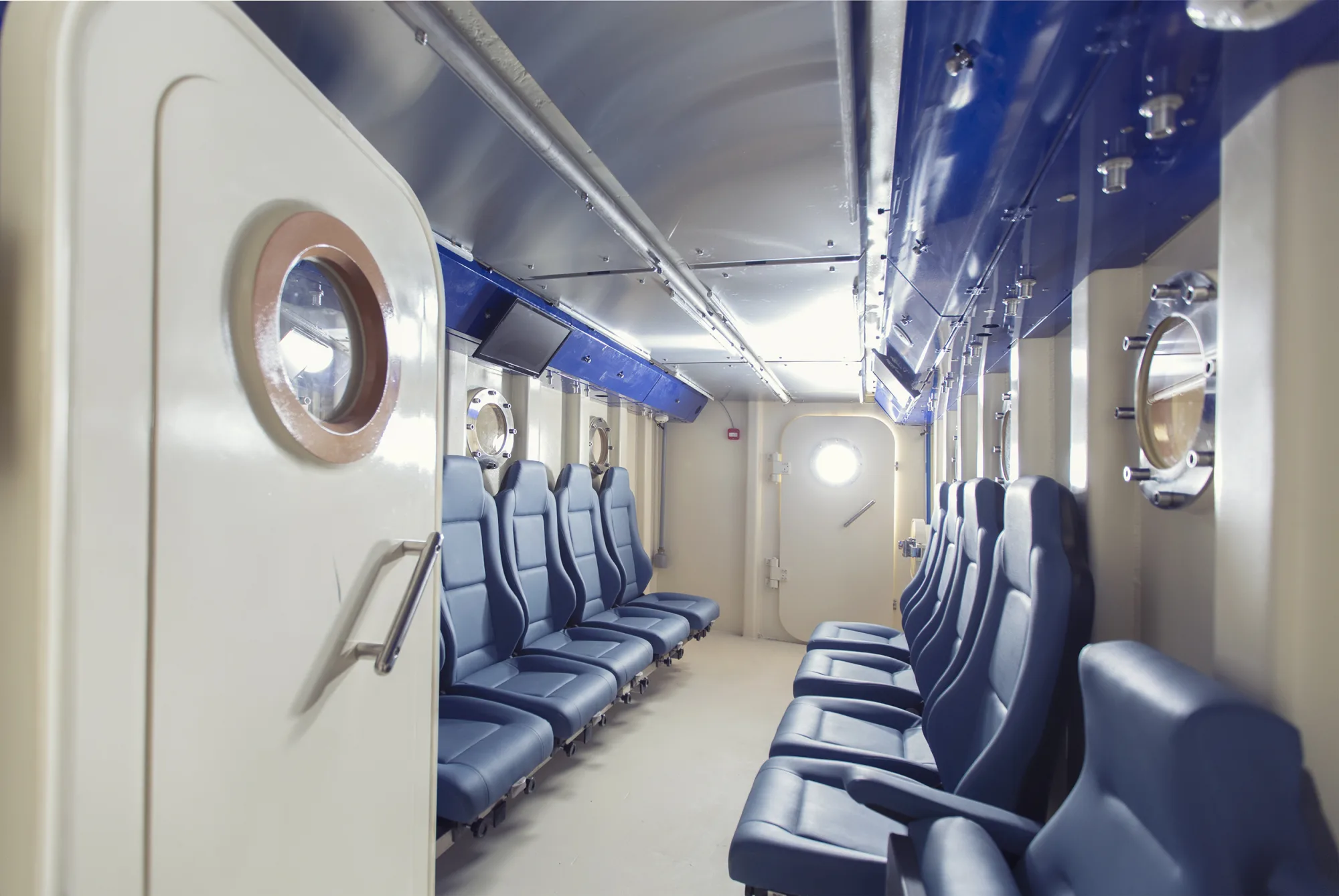

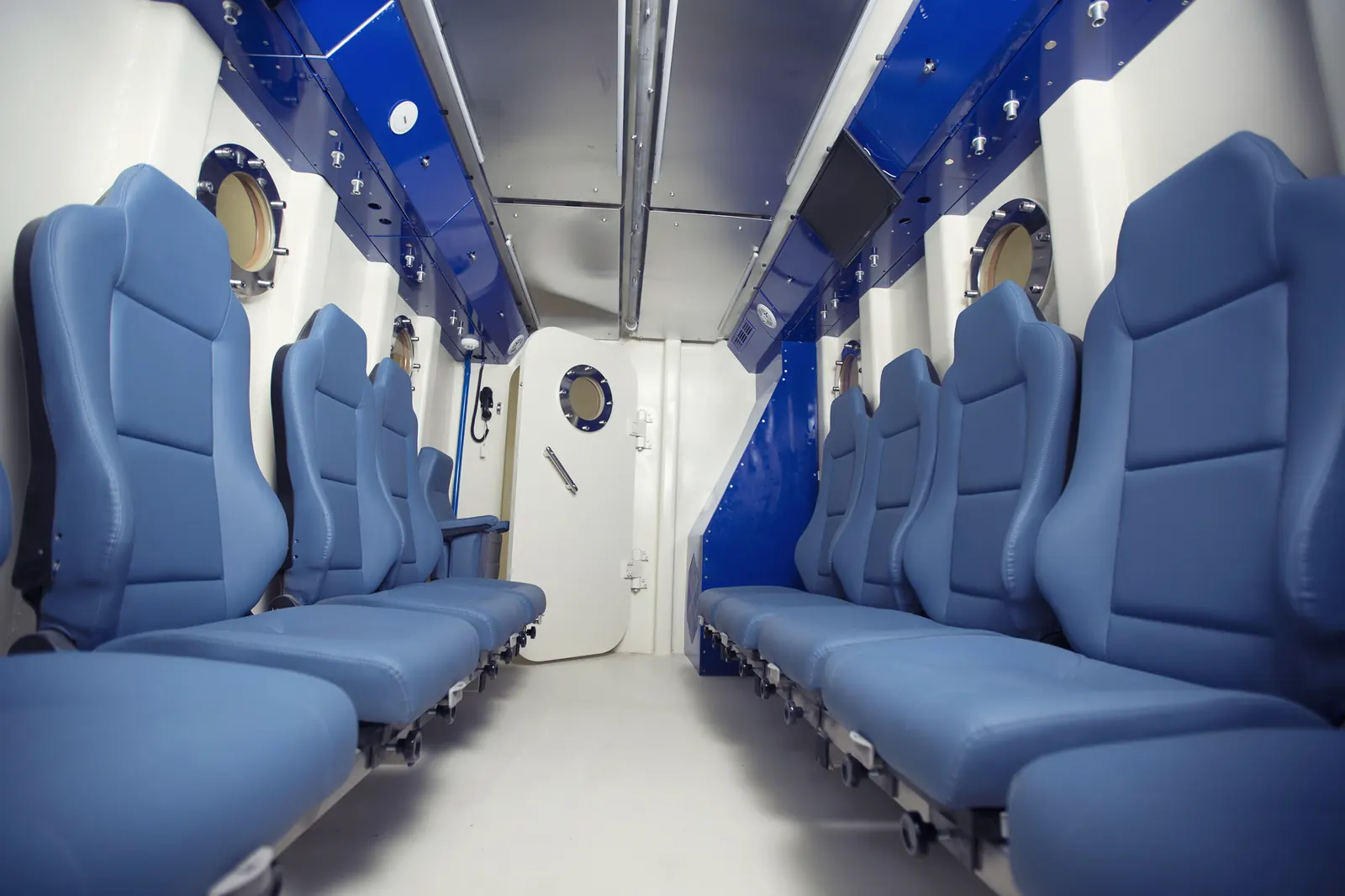

- Larger interior volume than the Omega
- Needs a bigger room to take it
Floor plan first
The room decides whether the rectangular section earns its space or an Omega does the same job in less of it.
